Maphunziro a waya wa Standard & Smart 7S BMS

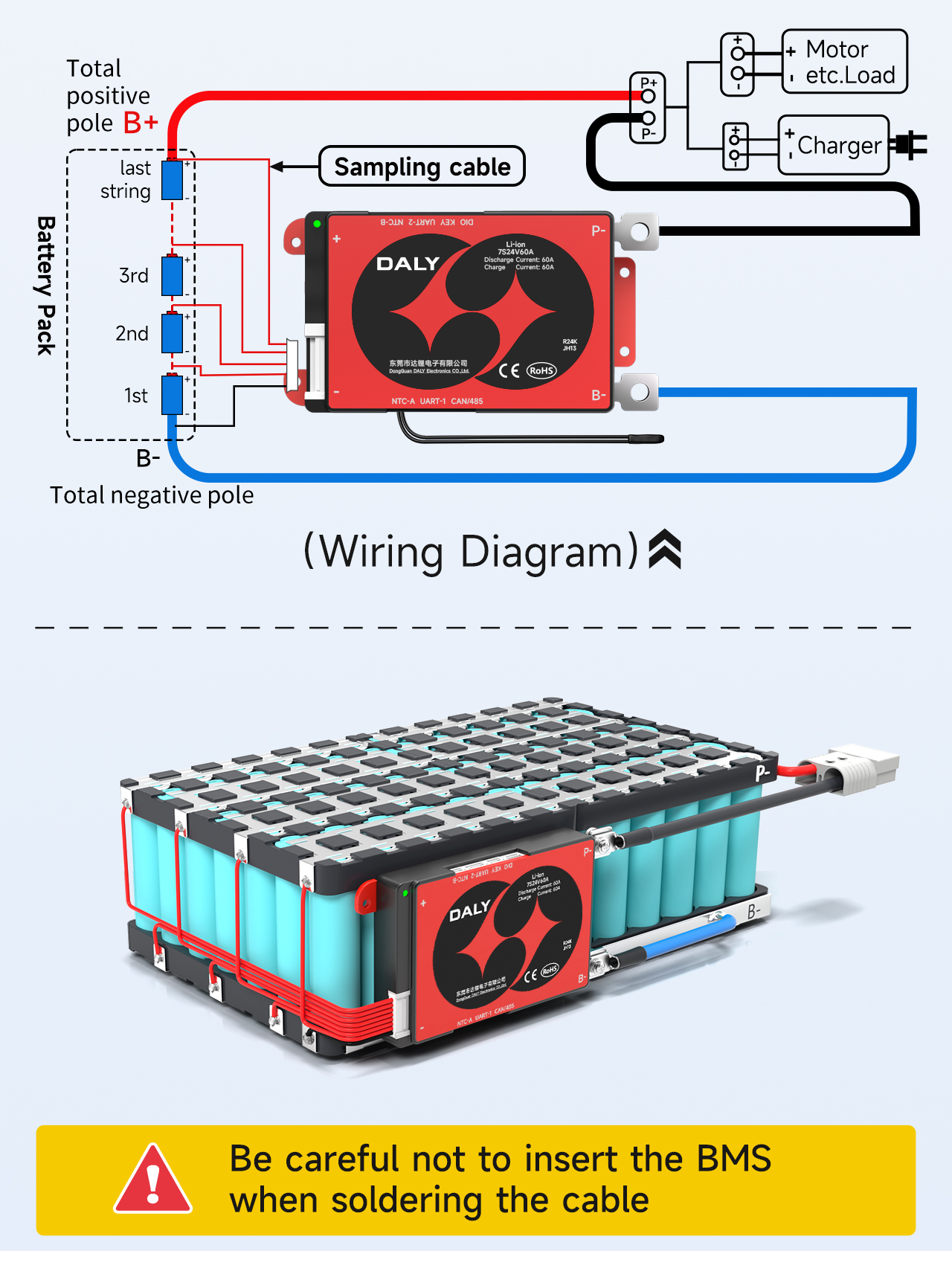

Tengani 7S12P18650 batire paketi mwachitsanzo
Samalani kuti musalowetse bolodi loteteza pamene mukugulitsa chingwe.

三元7串接线流程-英文_01

Ⅰ. Chongani mizere ya zitsanzo

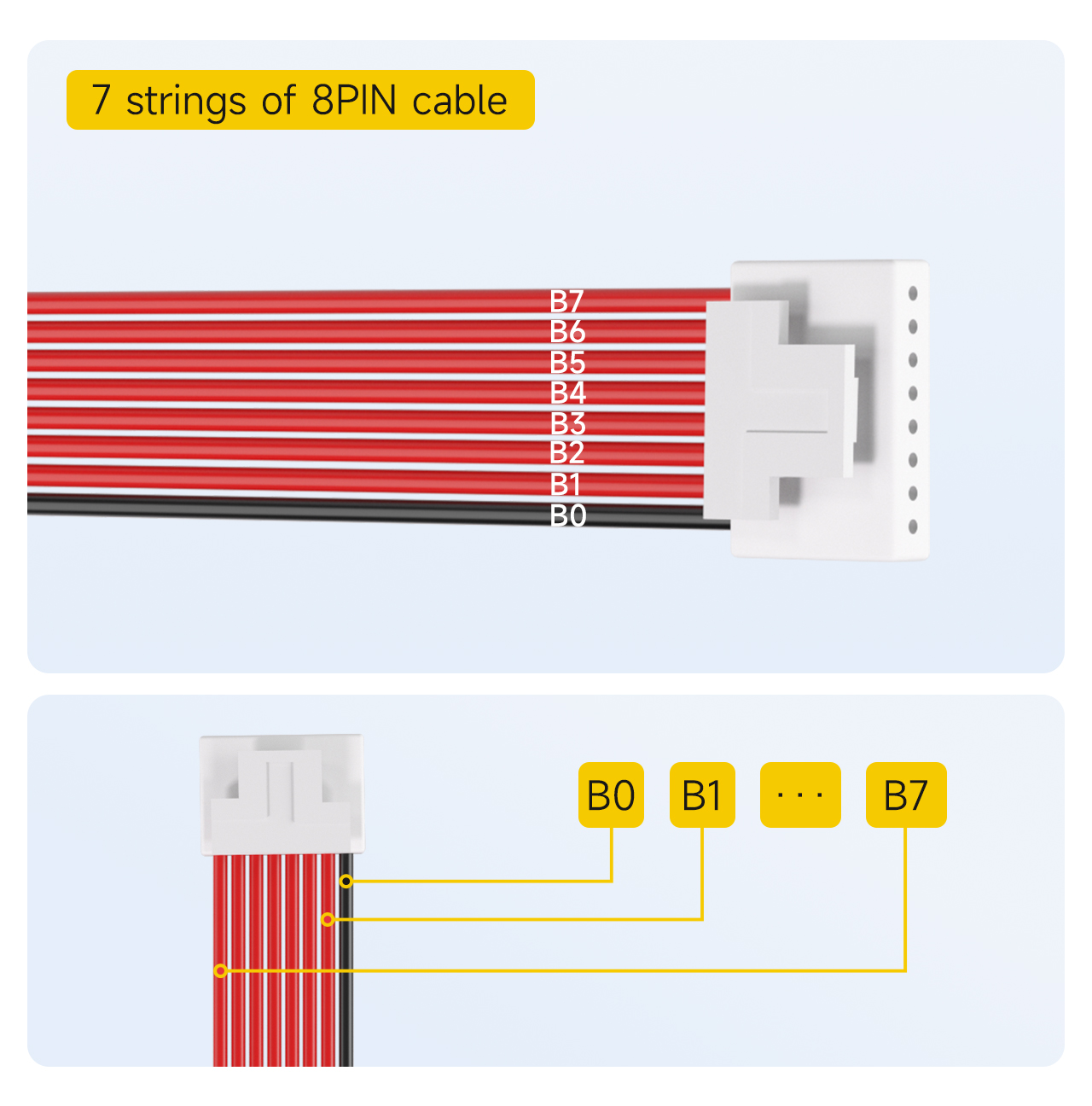

7S BMS ndi8PIN chingwe
Chidziwitso: Chingwe chosasinthika cha zitsanzo za7-Chingwe chachitetezo cha board board ndi8PIN.
1. Lembani chingwe chakuda ngati B0.
2. Chingwe choyamba chofiira pafupi ndi chingwe chakuda chimalembedwa ngati B1.
... (ndi zina zotero, zolembedwa motsatizana)
8.Mpaka chingwe chofiira chomaliza, cholembedwa kuti B7.

三元7串接线流程-英文_02

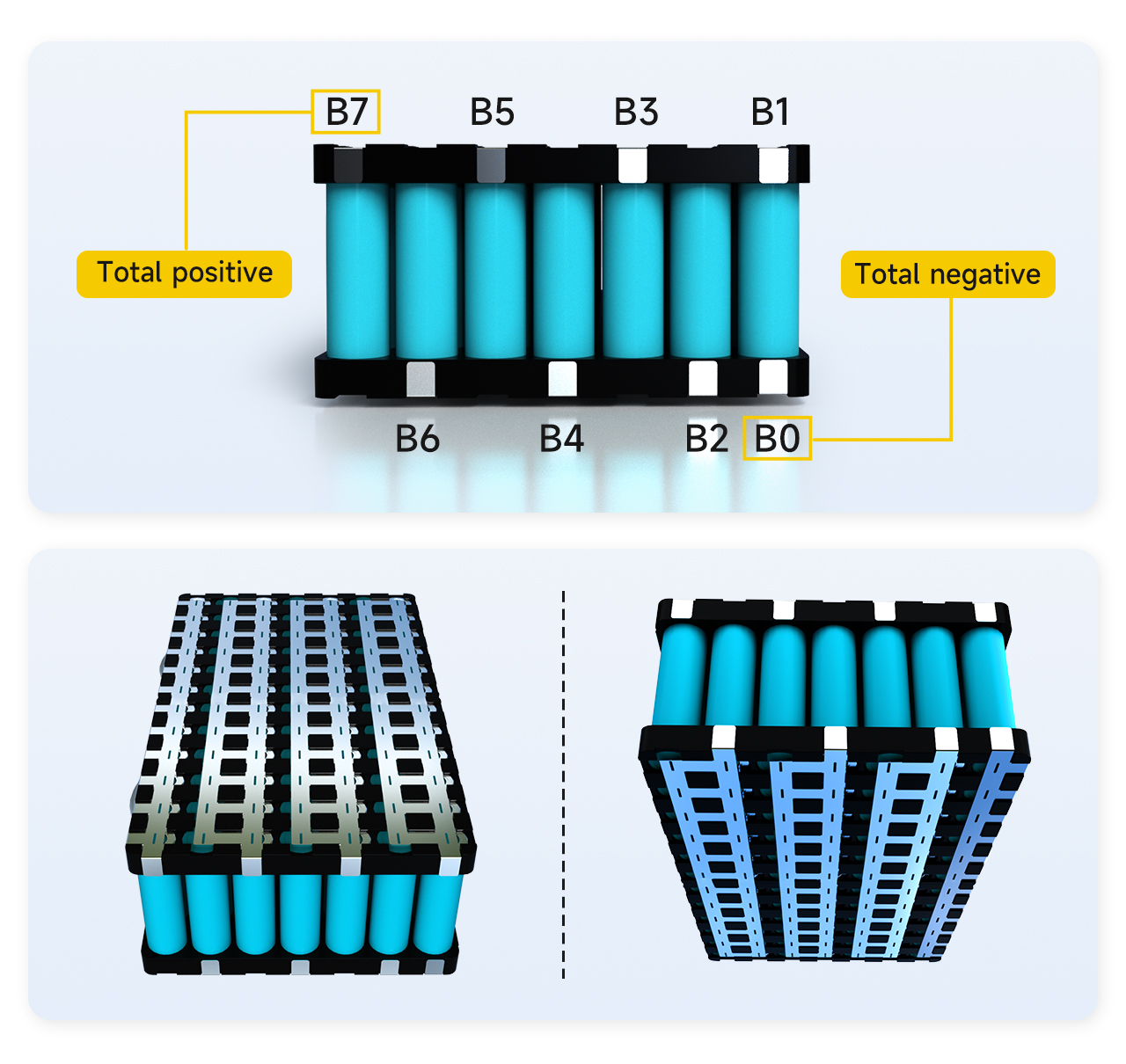

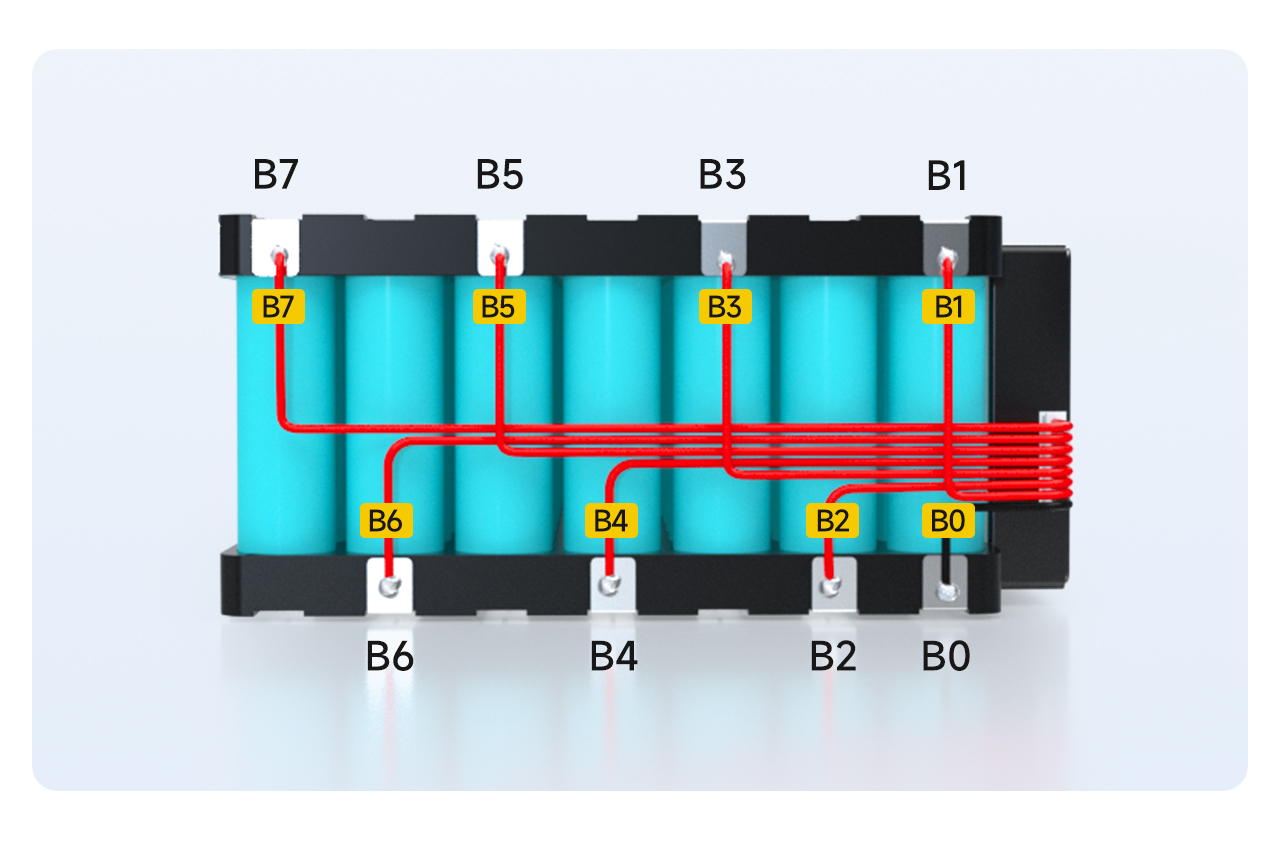

Ⅱ.Lembani dongosolo la mfundo zowotcherera batire

Pezani malo omwe ali ndi chingwe chowotcherera cha chingwe, choyamba lembani malo omwe akugwirizana nawo pa batri.
1. Pole yoyipa yonse ya paketi ya batri imalembedwa ngati B0.
2. Kulumikizana pakati pa mtengo wabwino wa mzere woyamba wa mabatire ndi mlongoti wolakwika wa mzere wachiwiri wa mabatire amalembedwa ngati B1.
3. Kulumikizana pakati pa mtengo wabwino wa chingwe chachiwiri cha mabatire ndi chitsulo choyipa cha chingwe chachitatu cha mabatire chimalembedwa ngati B2.

... (ndi zina zotero)

7.Kugwirizana pakati pa zabwino mzati wa6chingwe cha batri ndi mlongoti woipa wa7chingwe cha batri chimalembedwa ngati B6.

8. Elekitirodi yabwino ya chingwe cha 7 cha batri imalembedwa kuti B7.
Zindikirani: Chifukwa batire paketi ili ndi zingwe zonse 7, B7 ndiyenso mtengo wabwino wa paketi ya batri.Ngati B7 si gawo lokwanira la paketi ya batri, zimatsimikizira kuti kuyika chizindikiro ndikolakwika, ndipo kuyenera kuyang'aniridwa ndikuyikanso chizindikiro.

三元7串接线流程-英文_03

Ⅲ.Soldering ndi wiring

1. B0 ya chingwe imagulitsidwa kumalo a B0 a batri.
2. Chingwe B1 chimagulitsidwa kumalo a B1 a batri.
... (ndi zina zotero, kuwotcherera motsatizana)
8. Chingwe cha B7 chimagulitsidwa kumalo a B7 a batri.

三元7串接线流程-英文_04

Ⅳ.VKuzindikira kwa oltage

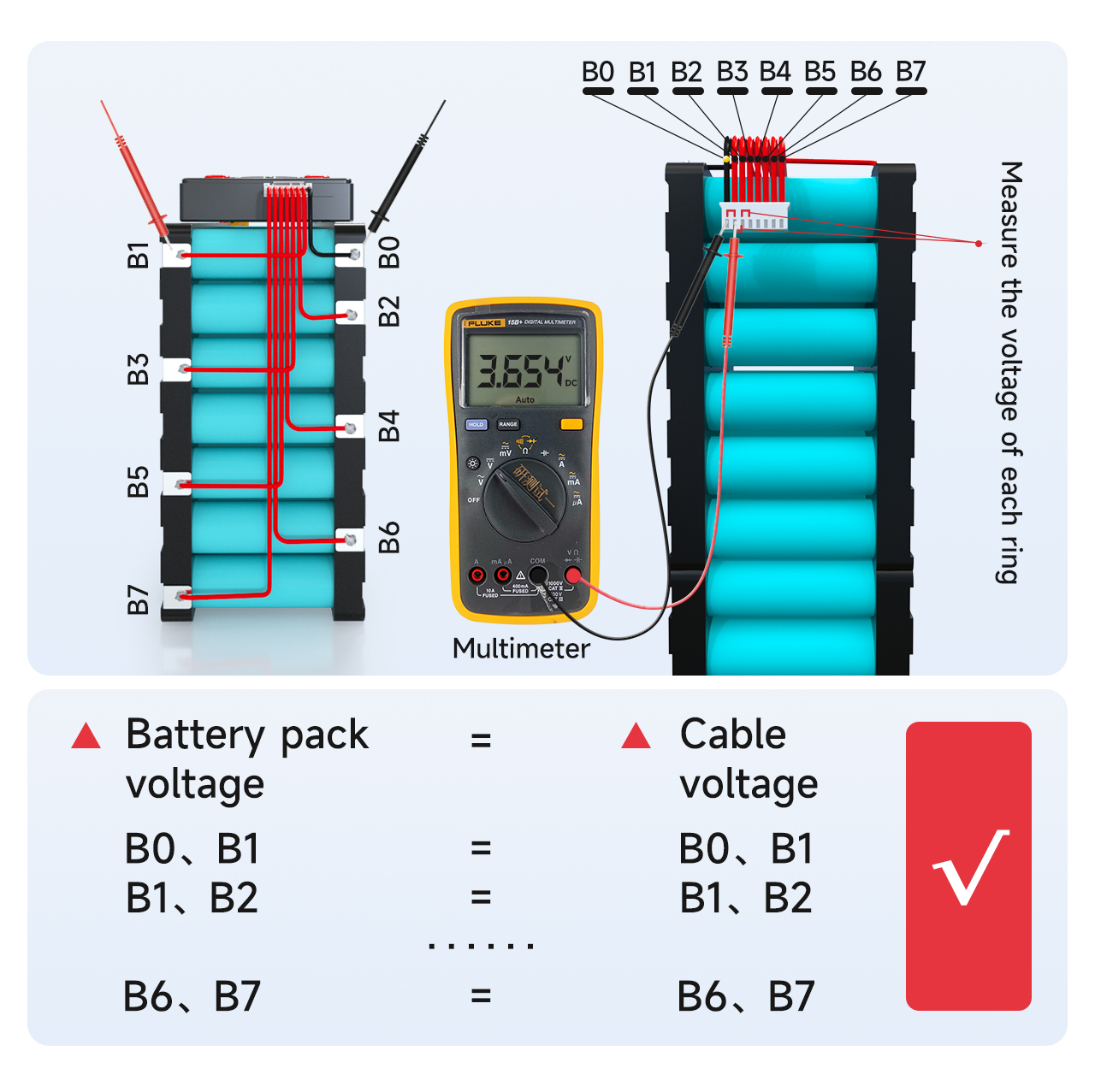

Yezerani mphamvu yamagetsi pakati pa zingwe zoyandikana ndi ma multimeter kuti mutsimikizire kuti magetsi olondola amasonkhanitsidwa ndi zingwe.

Yesani ngati voteji ya chingwe B0 kupita ku B1 ndi yofanana ndi mphamvu ya batire paketi B0 mpaka B1.Ngati ndizofanana, zimatsimikizira kuti kusonkhanitsa magetsi ndikolondola.Ngati sichoncho, zimatsimikizira kuti mzere wosonkhanitsira ndi wowotcherera mofooka, ndipo chingwecho chiyenera kupangidwanso.Mwa fanizo, yesani ngati ma voltages a zingwe zina asonkhanitsidwa molondola.

2. Kusiyana kwamagetsi kwa chingwe chilichonse sikuyenera kupitirira 1V.Ngati idutsa 1V, zikutanthauza kuti pali vuto ndi waya, ndipo muyenera kubwereza sitepe yapitayi kuti muzindikire.

三元7串接线流程-英文_05

.Pkudziwika kwa khalidwe la chitetezo

!Nthawi zonse onetsetsani kuti magetsi olondola apezeka musanalowetse bolodi yoteteza!

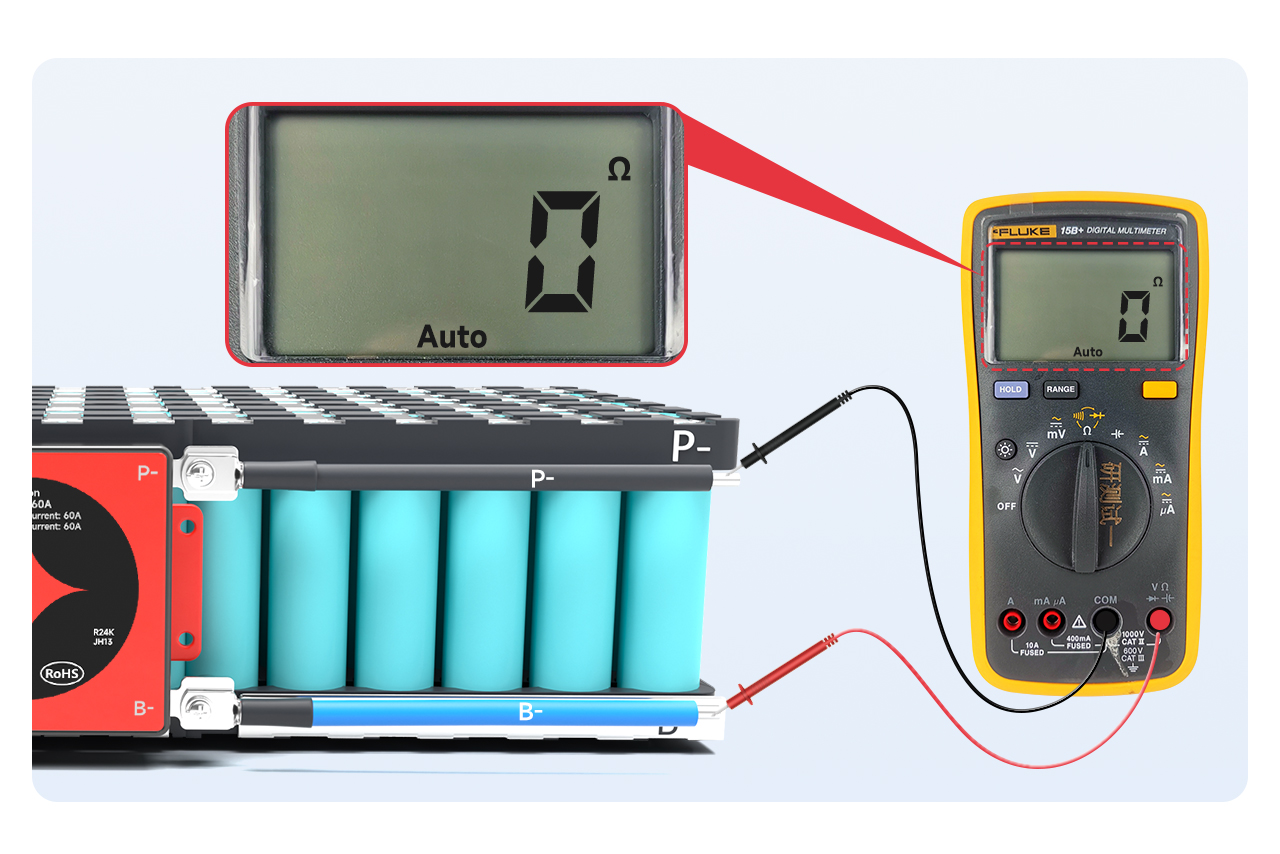

Sinthani ma multimeter kukhala mulingo wokana wamkati ndikuyesa kukana kwamkati pakati pa B- ndi P-.Ngati kukana kwamkati kumalumikizidwa, kumatsimikizira kuti bolodi lachitetezo ndilabwino.
Zindikirani: Mukhoza kuweruza kayendetsedwe kake poyang'ana mtengo wotsutsa wamkati.Mtengo wotsutsa wamkati ndi 0Ω, kutanthauza conduction.Chifukwa cha zolakwika za multimeter,zambiri,zosakwana 10mΩ zikutanthauza conduction;mutha kusinthanso ma multimeter kukhala buzzer.Kulira kumamveka.

三元7串接线流程-英文_06

Zindikirani:

1. Bolodi lotetezera lokhala ndi zofewa zofewa liyenera kumvetsera kayendetsedwe ka kusinthako pamene kusinthako kutsekedwa.

2. Ngati bolodi lachitetezo silikuyenda, chonde siyani sitepe yotsatira ndikulumikizana ndi ogulitsa kuti akonze.

Ⅵ.Lumikizani mzere wotuluka

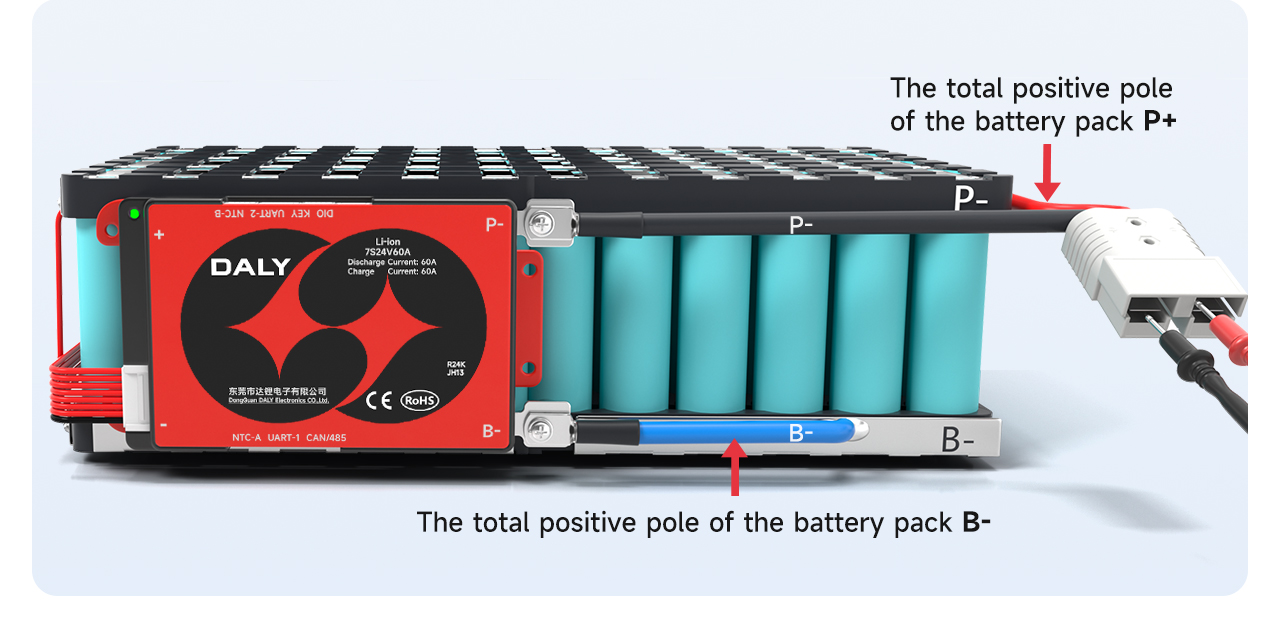

Pambuyo powonetsetsa kuti bolodi lachitetezo ndilabwinobwino, gulitsani waya wa B-buluu pa bolodi lachitetezo ku B- ya paketi ya batri.Mzere wa P pa bolodi lachitetezo umagulitsidwa pamtengo woyipa ndikutulutsa.

Pambuyo kuwotcherera, fufuzani ngati voteji ya bolodi yoteteza kwambiri ikugwirizana ndi mphamvu ya batri.

三元7串接线流程-英文_07
三元7串接线流程-英文_08

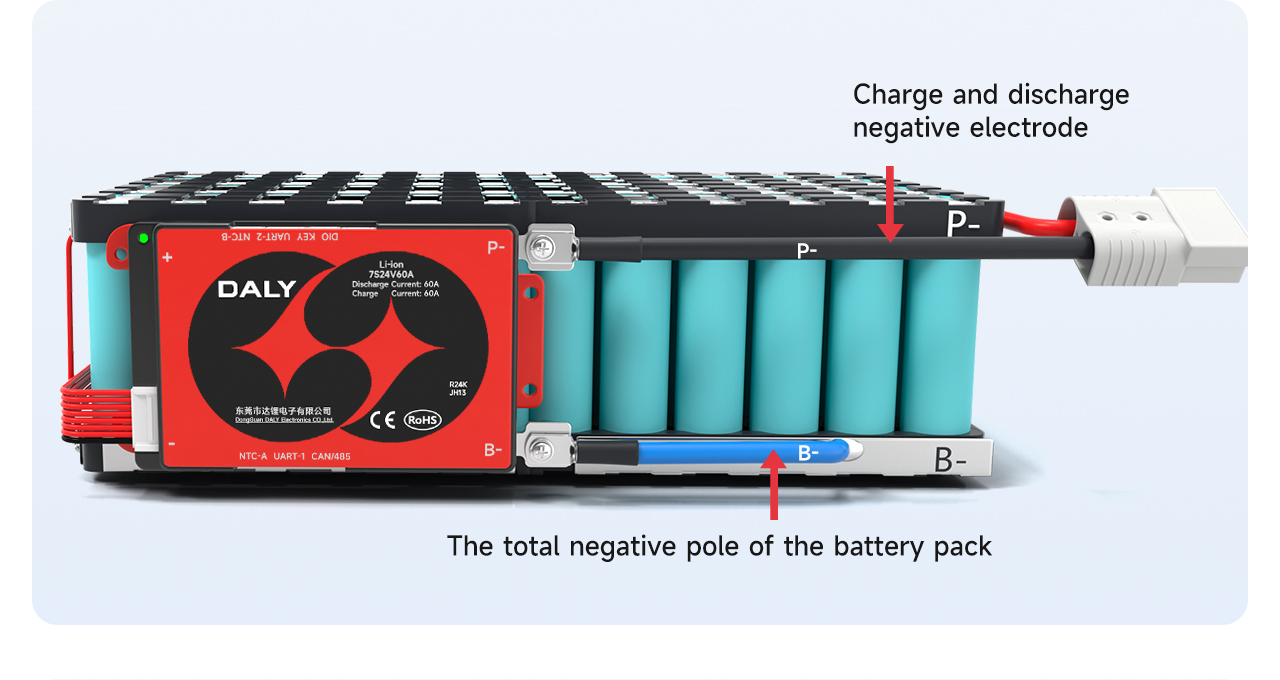

Zindikirani: Doko lolipiritsa ndi doko lotulutsira la bolodi lodzitchinjiriza limalekanitsidwa, ndipo mzere wowonjezera wa C (womwe umawonetsedwa ndi chikasu) uyenera kulumikizidwa pamtengo woyipa wa charger;P-line imalumikizidwa ndi mzati woyipa wa kutulutsa.

三元7串接线流程-英文_09

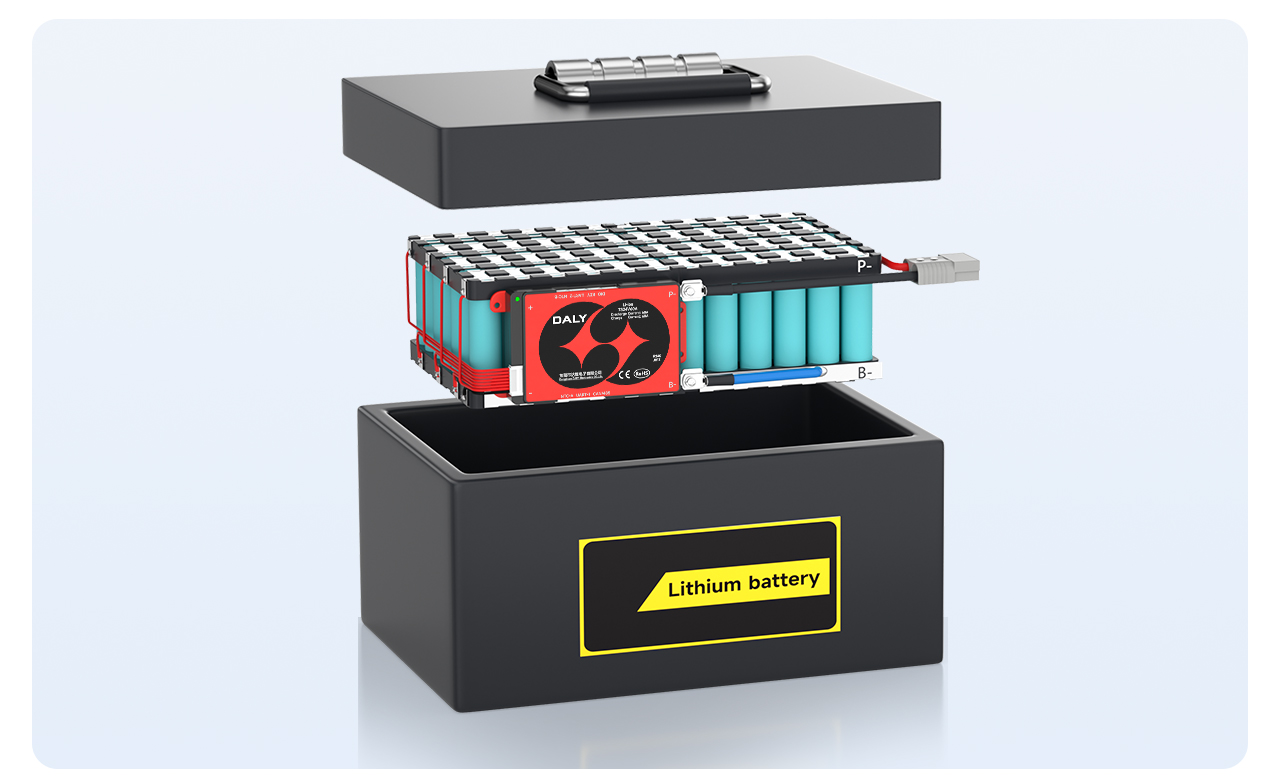

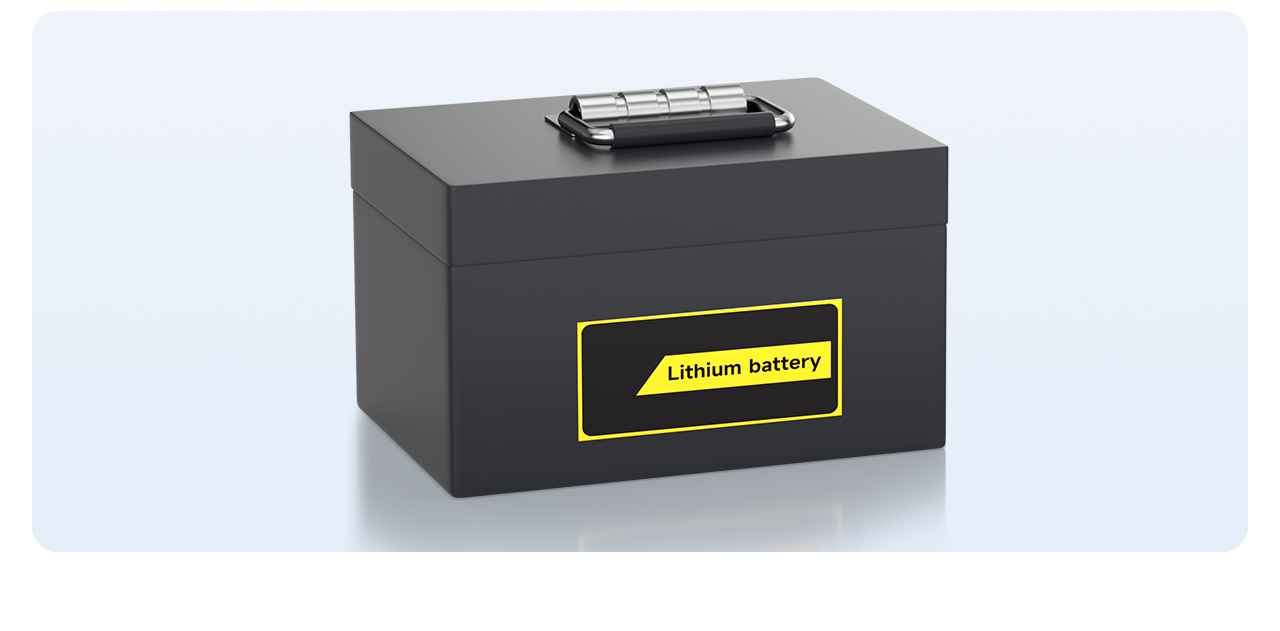

Pomaliza, ikani batire paketi mkati mwa bokosi la batri, ndipo batire yomalizidwa imasonkhanitsidwa.
