Maphunziro a waya wa Standard & Smart 8S BMS

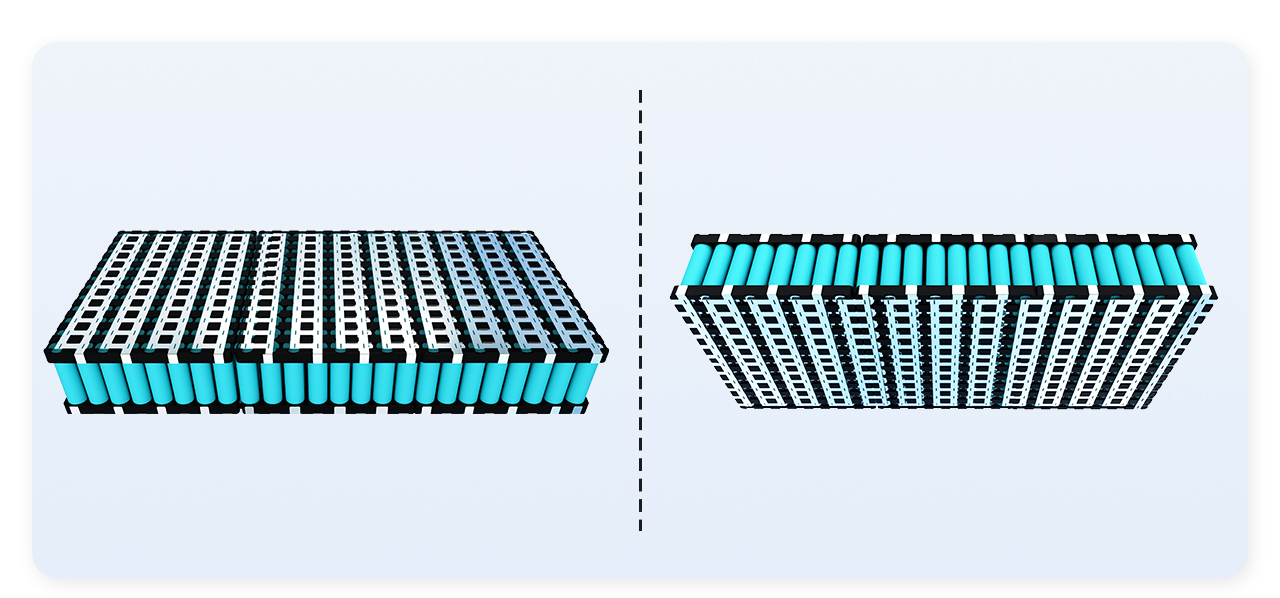

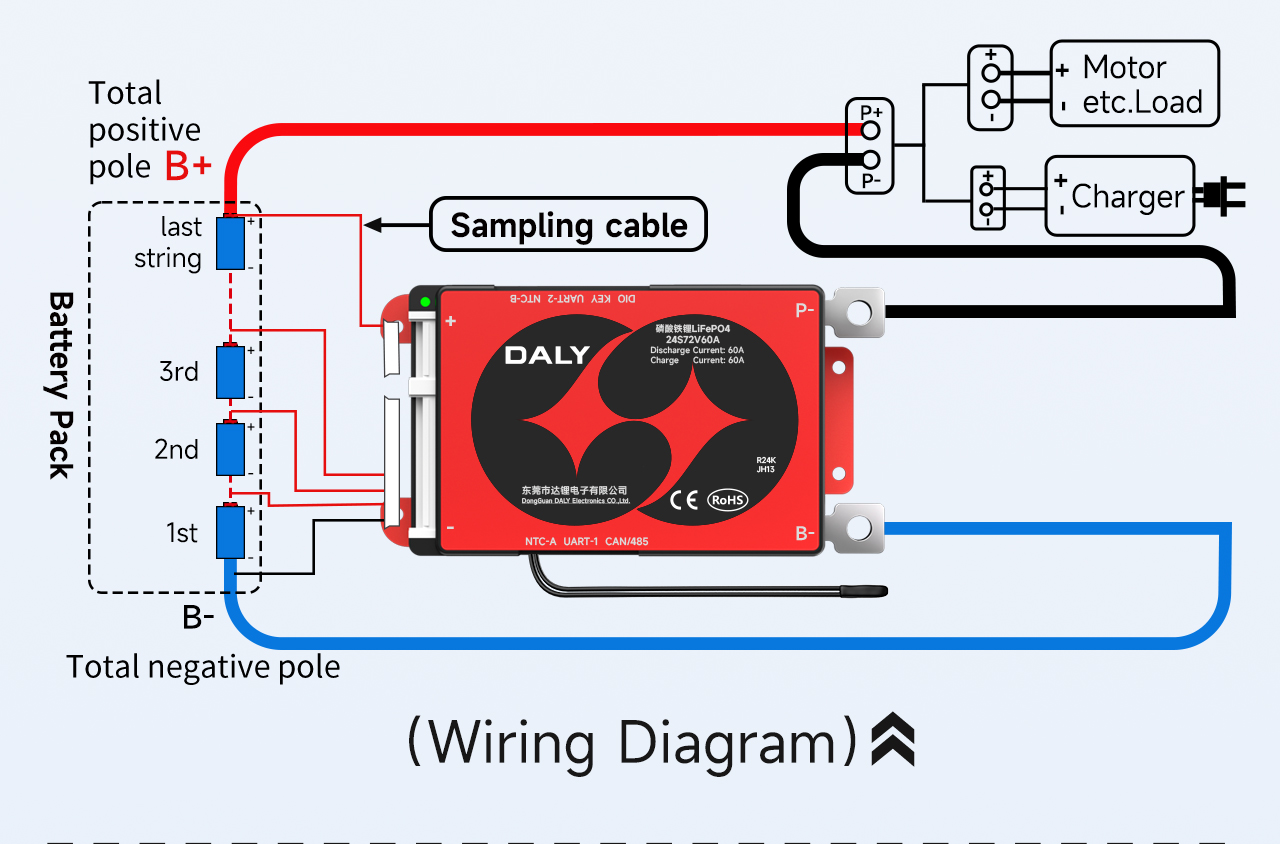

Tengani 24 mndandanda ndi 12 parallel 18650 batire paketi mwachitsanzo

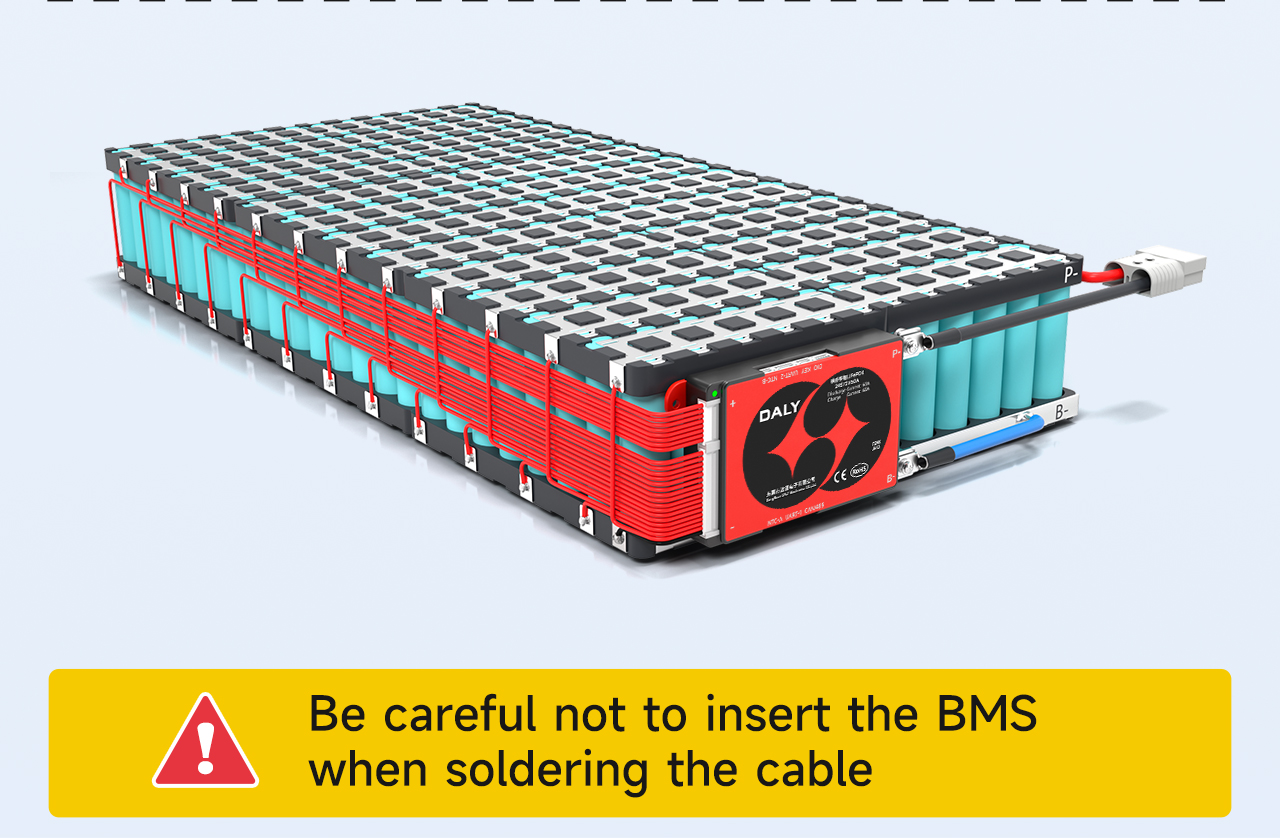

Samalani kuti musalowetse bolodi loteteza pamene mukugulitsa chingwe

铁锂24串接线流程-英文_01
铁锂24串接线流程-英文_02

. Chongani mizere ya zitsanzo

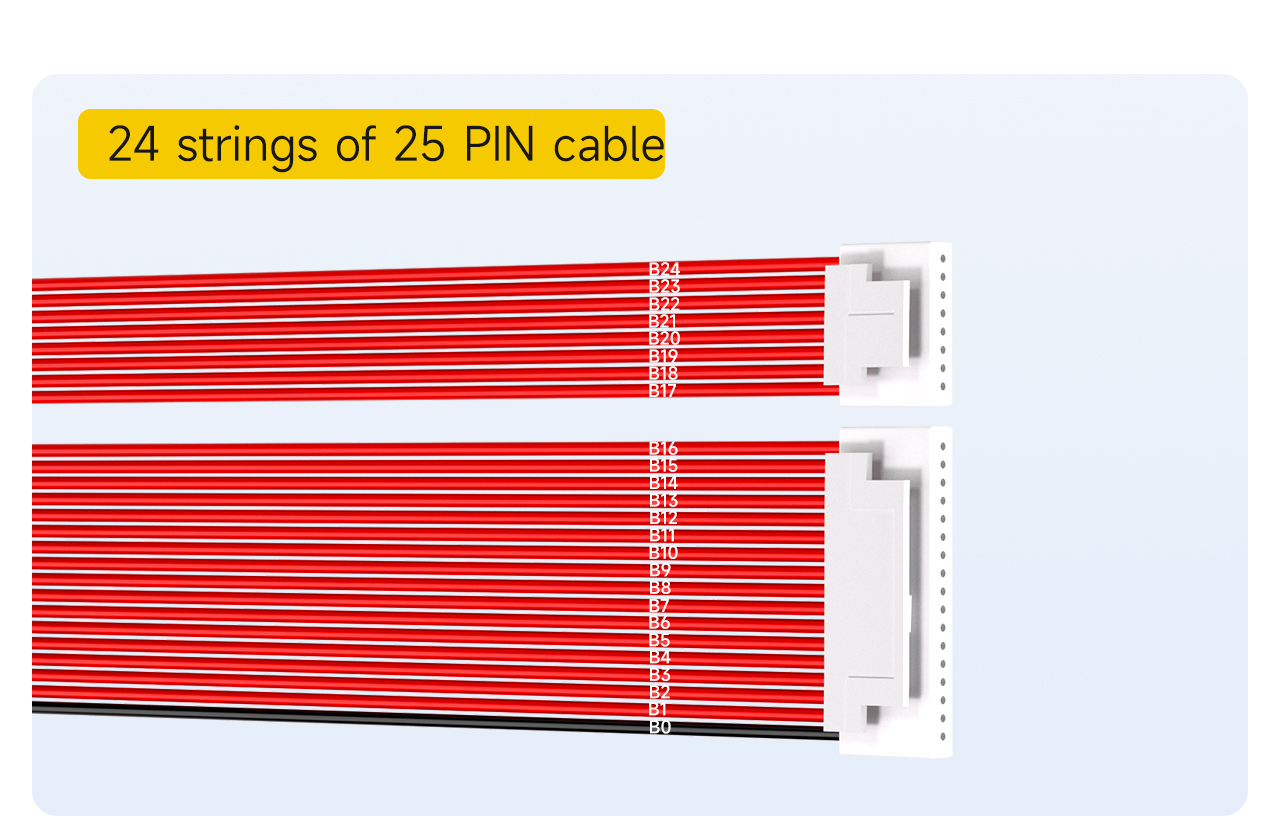

24 zingwe za25PIN chingwe

Chidziwitso: Chingwe chosasinthika cha zitsanzo za24-Chingwe chachitetezo cha board board ndi25PIN.

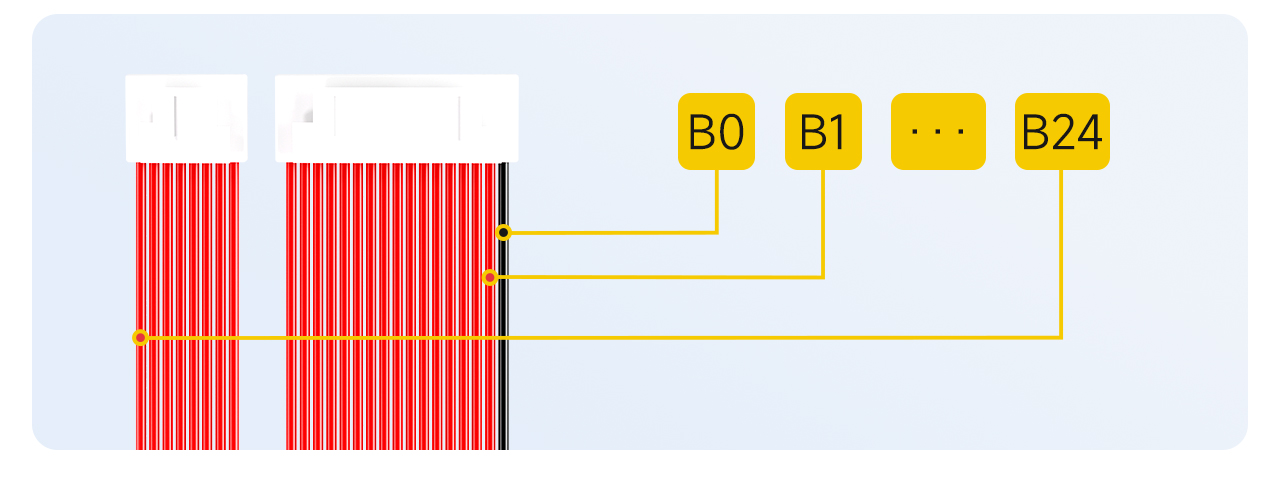

1. Lembani chingwe chakuda ngati B0.

2. Chingwe choyamba chofiira pafupi ndi chingwe chakuda chimalembedwa ngati B1

... (ndi zina zotero, zolembedwa motsatizana)

25.Mpaka chingwe chofiira chomaliza, cholembedwa kuti B24.





铁锂24串接线流程-英文_03
铁锂24串接线流程-英文_04

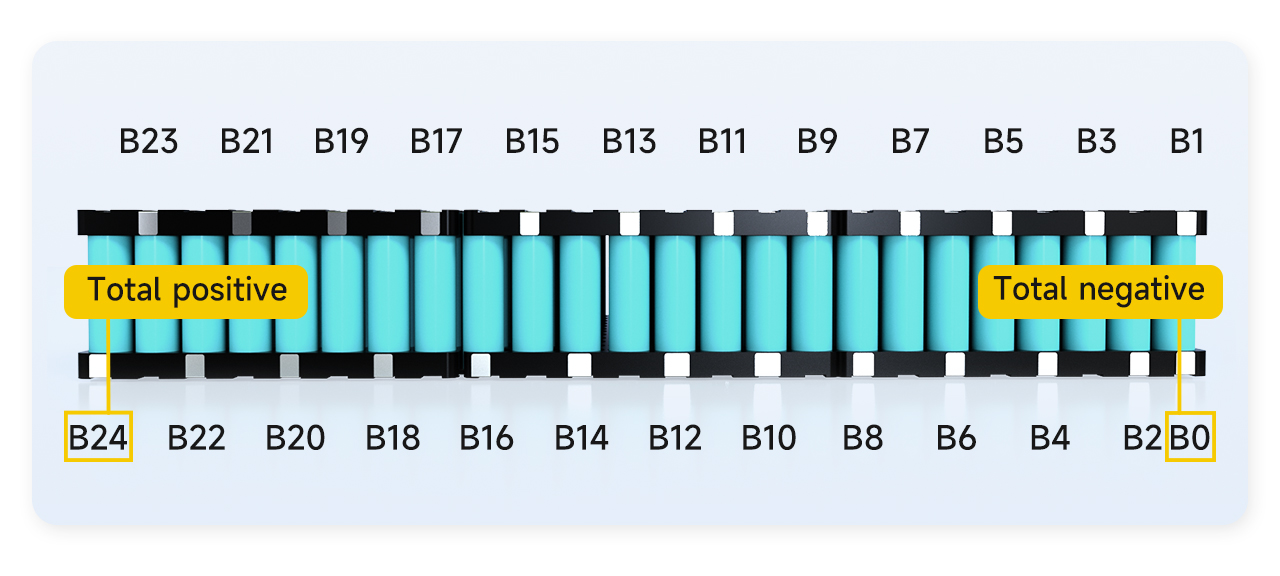

. Lembani dongosolo la mfundo zowotcherera batire

Pezani malo omwe ali ndi chingwe chowotcherera cha chingwe, choyamba lembani malo omwe akugwirizana nawo pa batri

1. Pole yoyipa yonse ya paketi ya batri imalembedwa ngati B0

2. Kulumikizana pakati pa mtengo wabwino wa mzere woyamba wa mabatire ndi mtengo wolakwika wa mzere wachiwiri wa mabatire ndi chizindikiro B1.

3. Kulumikizana pakati pa mtengo wabwino wa chingwe chachiwiri cha mabatire ndi mtengo wolakwika wa chingwe chachitatu cha mabatire chalembedwa kuti B2.

... (ndi zina zotero)

24.Kugwirizana pakati pa zabwino mzati wa23chingwe cha batri ndi mlongoti woipa wa24chingwe cha batri chimalembedwa ngati B23.

25. Elekitirodi yabwino ya chingwe cha batri ya 24 imalembedwa ngati B24.

Zindikirani: Chifukwa batire paketi ili ndi zingwe zonse za 24, B24 ndiyenso mtengo wabwino wa paketi ya batri.Ngati B24 si gawo lokwanira la paketi ya batri, zimatsimikizira kuti dongosolo loyika chizindikiro ndilolakwika, ndipo liyenera kuyang'aniridwa ndikuyikanso chizindikiro.



铁锂24串接线流程-英文_05
铁锂24串接线流程-英文_06

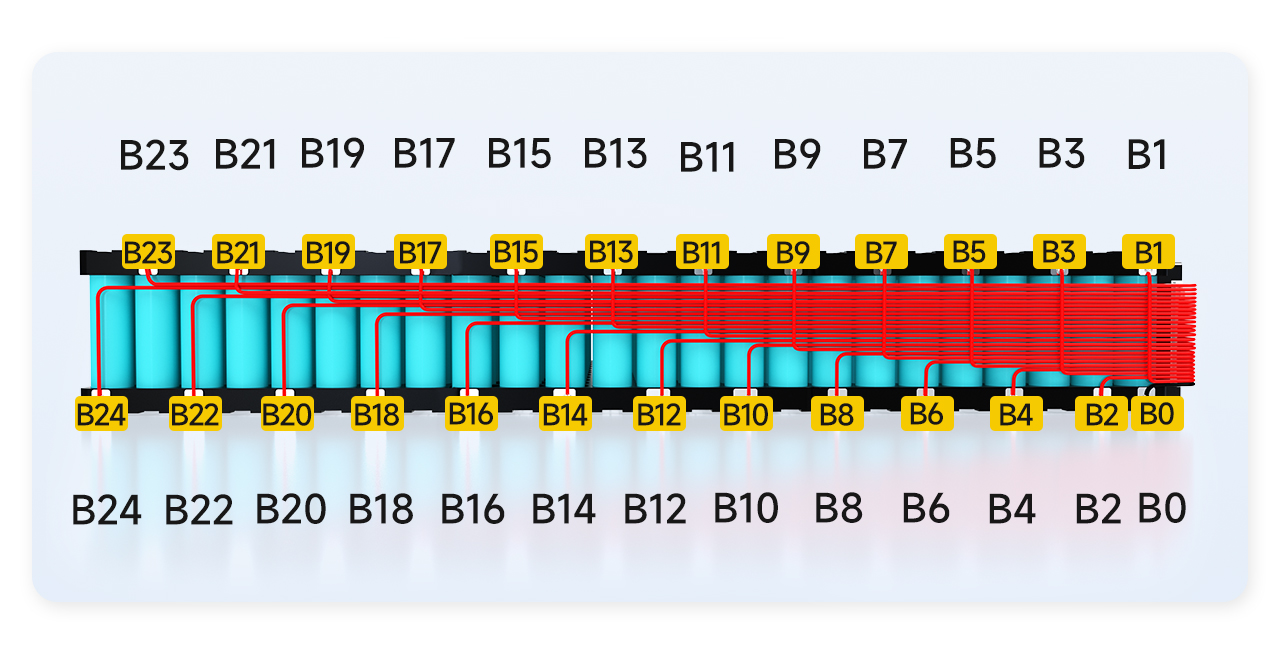

. Soldering ndi wiring

1. B0 ya chingwe imagulitsidwa kumalo a B0 a batri.

2. Chingwe B1 chimagulitsidwa kumalo a B1 a batri.

... (ndi zina zotero, kuwotcherera motsatizana)

25. Chingwe cha B24 chimagulitsidwa kumalo a B24 a batri.

铁锂24串接线流程-英文_07

. Kuzindikira mphamvu

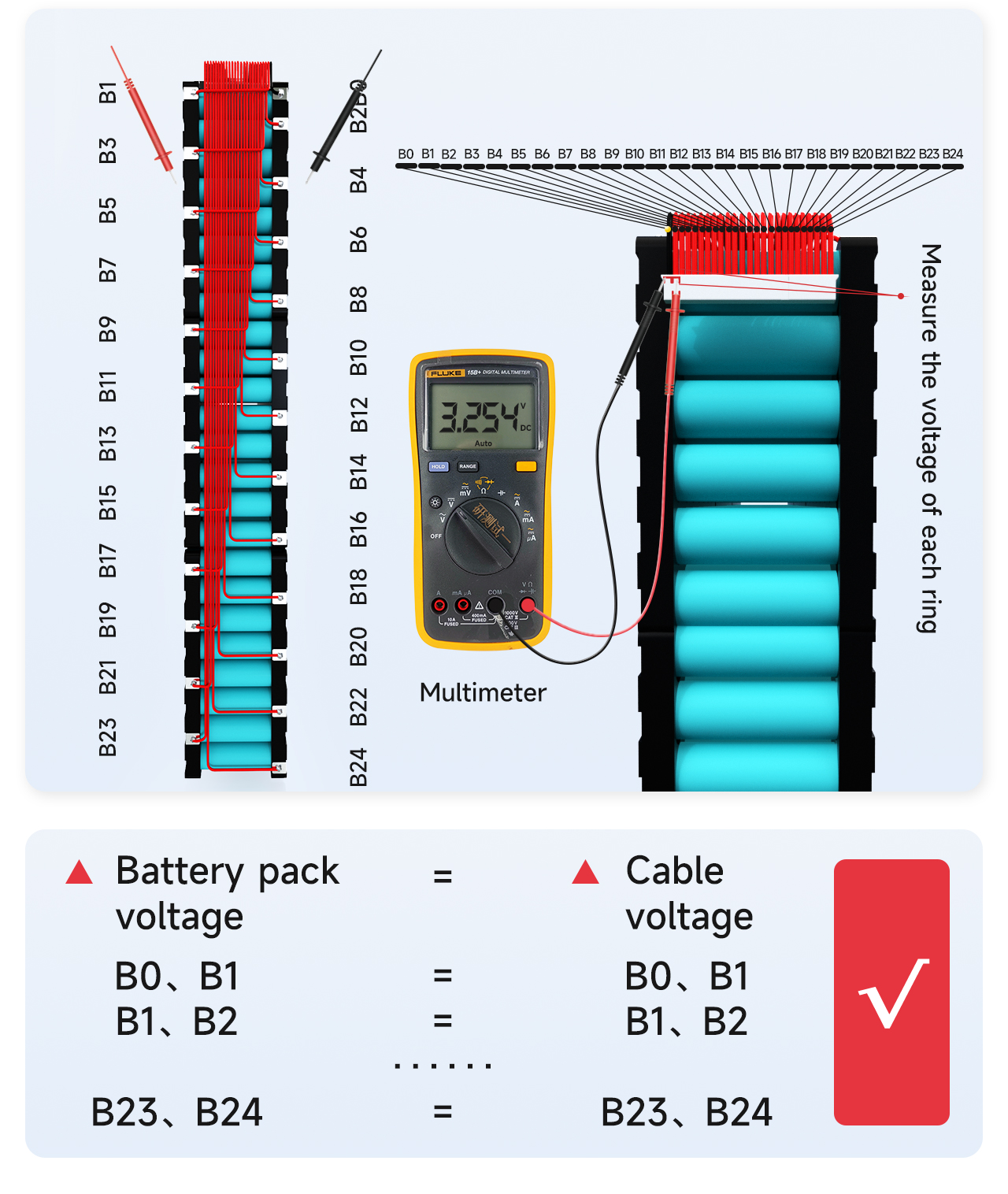

Yezerani mphamvu yamagetsi pakati pa zingwe zoyandikana ndi ma multimeter kuti mutsimikizire kuti magetsi olondola amasonkhanitsidwa ndi zingwe.

1. Yesani ngati voteji ya chingwe B0 mpaka B1 ndi yofanana ndi mphamvu ya batire paketi B0 mpaka B1.Ngati ndizofanana, zimatsimikizira kuti kusonkhanitsa magetsi ndikolondola.Ngati sichoncho, zimatsimikizira kuti mzere wosonkhanitsira ndi wowotcherera mofooka, ndipo chingwecho chiyenera kupangidwanso.Mwa fanizo, yesani ngati ma voltages a zingwe zina asonkhanitsidwa molondola.

2. Kusiyana kwamagetsi kwa chingwe chilichonse sikuyenera kupitirira 1V.Ngati idutsa 1V, zikutanthauza kuti pali vuto ndi waya, ndipo muyenera kubwereza sitepe yapitayi kuti muzindikire.

铁锂24串接线流程-英文_08

. Kuzindikira kwa board board quality

!Nthawi zonse onetsetsani kuti magetsi olondola apezeka musanalowetse bolodi yoteteza!

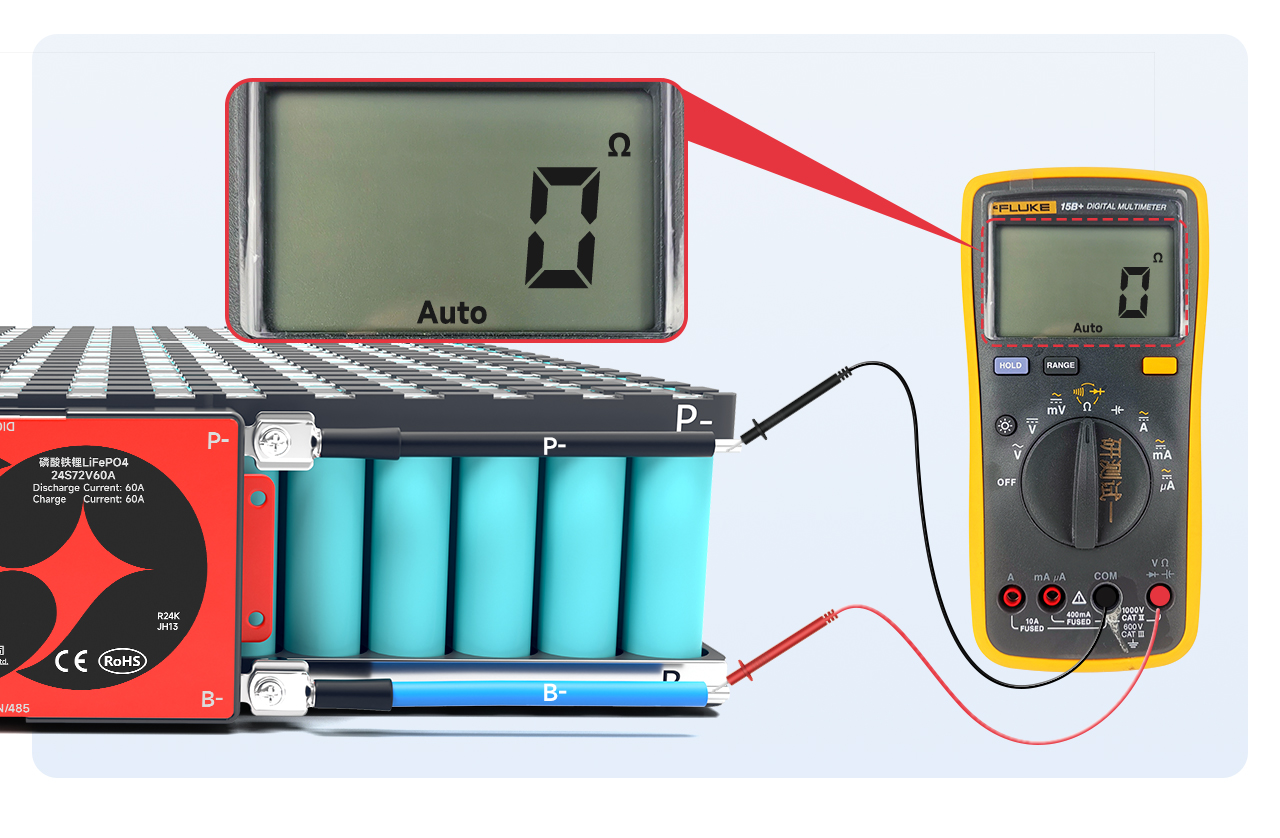

Sinthani ma multimeter kukhala mulingo wokana wamkati ndikuyesa kukana kwamkati pakati pa B- ndi P-.Ngati kukana kwamkati kumalumikizidwa, kumatsimikizira kuti bolodi lachitetezo ndilabwino.

Zindikirani: Mukhoza kuweruza kayendetsedwe kake poyang'ana mtengo wotsutsa wamkati.Mtengo wotsutsa wamkati ndi 0Ω, kutanthauza conduction.Chifukwa cha cholakwika cha multimeter, nthawi zambiri zosakwana 10mΩ zikutanthauza conduction;mutha kusinthanso ma multimeter kukhala buzzer.Kulira kumamveka.

Zindikirani:

1. Bolodi lotetezera lokhala ndi zofewa zofewa liyenera kumvetsera kayendetsedwe ka kusinthako pamene kusinthako kwatsekedwa.

2. Ngati bolodi lachitetezo silikuyenda, chonde siyani sitepe yotsatira ndikulumikizana ndi ogulitsa kuti akonze.



铁锂24串接线流程-英文_09

. Lumikizani mzere wotuluka

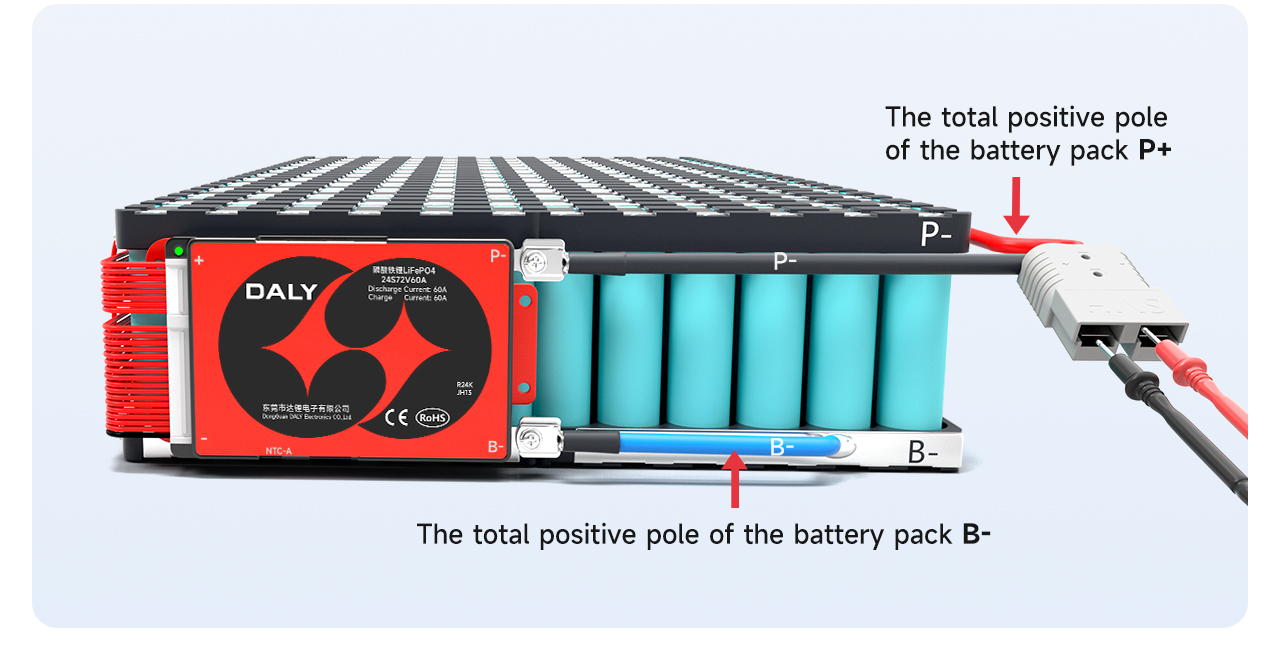

Pambuyo powonetsetsa kuti bolodi lachitetezo ndilabwinobwino, gulitsani waya wa B-buluu pa bolodi lachitetezo ku B- ya paketi ya batri.Mzere wa P pa bolodi lachitetezo umagulitsidwa pamtengo woyipa ndikutulutsa.

Pambuyo kuwotcherera, fufuzani ngati voteji ya bolodi yoteteza kwambiri ikugwirizana ndi mphamvu ya batri.

Dziwani mphamvu yamagetsi opitilira: (B-, P+) voteji = (P-, P+) voteji

Pole yabwino yolipiritsa ndi kutulutsa imalumikizidwa mwachindunji ndi mtengo wokwanira wa paketi ya batri.

铁锂24串接线流程-英文_10
铁锂24串接线流程-英文_11

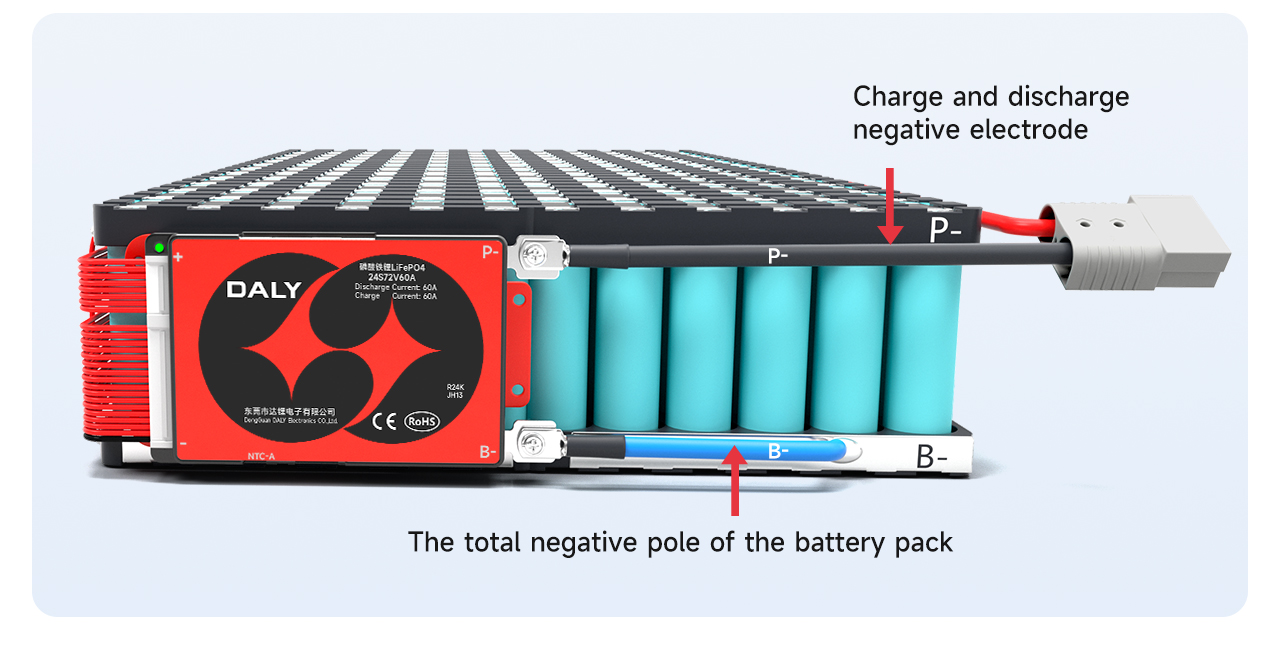

Zindikirani: Doko lolipiritsa ndi doko lotulutsira la bolodi lodzitchinjiriza limalekanitsidwa, ndipo mzere wowonjezera wa C (womwe umawonetsedwa ndi chikasu) uyenera kulumikizidwa pamtengo woyipa wa charger;P-line imalumikizidwa ndi mzati woyipa wa kutulutsa.

铁锂24串接线流程-英文_12

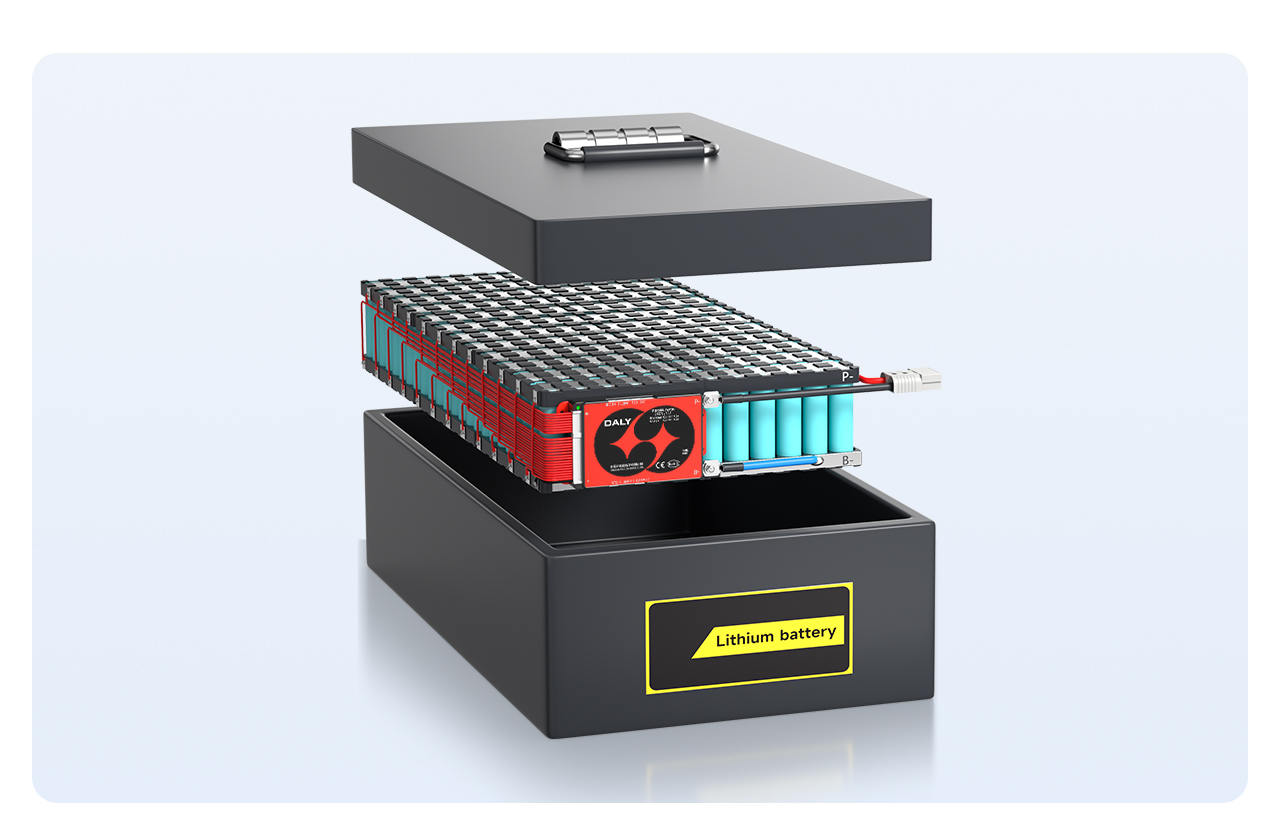

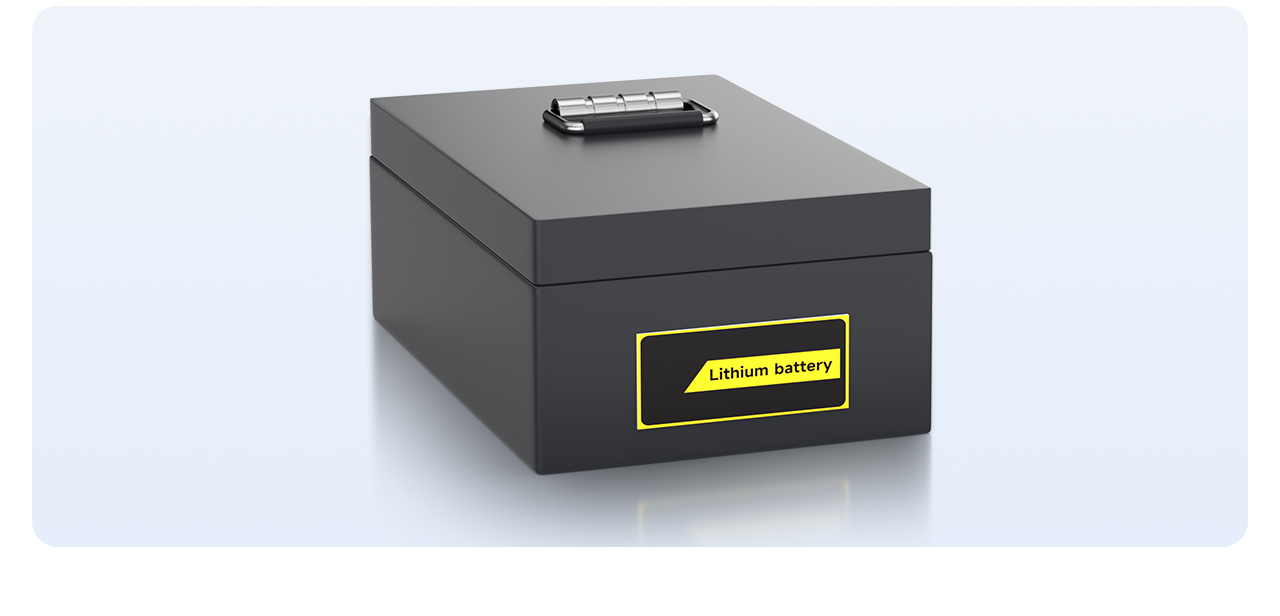

Pomaliza, ikani batire paketi mkati mwa bokosi la batri, ndipo batire yomalizidwa imasonkhanitsidwa

铁锂24串接线流程-英文_13
铁锂24串接线流程-英文_14
